Main Features:

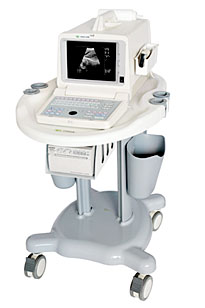

This versatile linear/convex ultrasound system is ideal for mixed practice. It is designed for bedside use and emergency scanning (triage ultrasound) either on site or in a rescue situation.Smartbook WED-2018,weight only 2kg,is distinguishable by its bright and clear image quality.The probes offer a wide range of diagnostic applications,This scanner is a cost effective solution for family doctors,veterinary scanning.The complete software package,the multi-step zoom,and the high product versatility are available in it.

Technical Specification :

Scanning Method:Convex,linear multi-frequency with wide band.

Display Mode:B,B+B,B+M,M

Gray Scale:256 levels

Monitor Size:10.4" TFT color LCD

Image Procession:DFS,DRF,RDA,VGA/DSC and image pre & post

Cine-memory:206 frames (human),256 frames(vet)

32 image permanent storage

Image magnification: ×1.0,×1.2,×1.5,×2.0 times

Multi-step Zoom (1:2) in both real-time and frozen modes

Focusing selectable

Depth adjustable in real-time of B and B+B mode

Image Conversion is U/D,L/R and B/W.

8 different coded-color on a external color monitor

15 different kinds of body marks

Measurement is in Distance ,Circumference/Area,Heart Rate?EF rate for heart,and GS,CRL,BPD,HC,FL,AC for OB/GY measurement,and Gestational Age,Fetal weight,EDD calculation.

Characteristic showing in real-time clock,ID,Sex,Age,Focusing info and Hospital Name

Options:

1). R40/3.5MHz convex probe

2). R20/5.0MHz micro-convex probe

3). L40/7.5MHz linear probe

4). L40/7.5MHz endorectal probe
